Home Lift — Compact, Quiet & Custom-Built for Your House
Space-saving residential lift with customizable cabin, smart safety features, and fast, clean installation. Ideal for duplexes & private villas.
Up to 225 kg / 2–3 persons
Travel: up to 10–15 m
Single or dual speed
Cabin or open platform
Key Facts
Capacity: 100–225 kg
1–3 persons depending on configuration
1–3 persons depending on configuration
Travel Height: up to 10–15 m
Up to 4–5 stops
Up to 4–5 stops
Cabin Options: full cabin, partial cabin, or open platform
Glass, FRP or metal panels
Glass, FRP or metal panels
Clean Installation
No structural changes in most cases
No structural changes in most cases
Where It Fits
Homes & Duplexes
Everyday comfort between floors.
Private Villas
Luxury look with glass or enclosed cabin.
Clinics & Offices
Barrier-free access in limited spaces.
Retrofit Projects
Ideal where a classic elevator is impractical.
Why Choose HMK Home Lift?
Safety First
- Multiple safety sensors & emergency stop
- Overspeed protection and soft start/stop
- Door interlocks & fail-safe brake
Comfort
- Quiet drive and smooth ride profile
- Cushioned seat/handrail options
- Auto-leveling at each landing
Design
- Compact footprint; fits small houses/duplexes
- Custom cabin sizes & finishes
- Rail color & glass choices to match décor
Easy Ownership
- Fast, dust-free installation in hours
- Battery backup options (UPS)
- Local service and remote diagnostics
Technical Specifications
| Item | Value | Notes |
|---|---|---|
| Cabin | Custom sizes per passenger/load | Glass / FRP / steel panels |
| Drive | Single or dual speed | Hydraulic or traction (per model) |
| Capacity | 100–225 kg | 1–3 persons |
| Stops | Up to 4–5 | Typical lift travel up to 10–15 m |
| Landings | Auto-leveling at each landing | Smooth stop profile |
| Power | Single-phase 220–240 V | UPS option for power cuts |
| Controls | On-board panel + call stations | Key lock, child lock options |
| Doors | Manual or powered | Swing or sliding, per design |
| Finish | 17 fabrics, 6 floor options | Custom RAL for rail/cabin |
| Environment | Indoor standard; outdoor kit | -10 to +40 °C with cover |
| Compliance | EN81-41/ similar local codes | As applicable |
* Provide both metric & imperial units in brochures for export markets.
Options & Accessories
🛡️
Body harness
Extra support when required.
Extra support when required.
🚪
Powered doors
Auto open/close at landings.
Auto open/close at landings.
🔋
Battery backup (UPS)
Keeps moving during outages.
Keeps moving during outages.
🎨
Cabin finishes
Fabrics, flooring, trims & rail color.
Fabrics, flooring, trims & rail color.
🧠
Smart control
App monitoring & usage alerts.
App monitoring & usage alerts.
🌧️
Outdoor package
Weather cover & stainless hardware.
Weather cover & stainless hardware.
Installation & Customization
- No pit or machine room required; installs on a flat, reinforced base.
- Single-phase power (220–240V AC).
- Minimal building work; many projects complete in under a day.
- Site survey & layout guidance provided.
- Fast, clean install within hours; no structural changes in most homes.
- On-site demo and full handover training.
- Custom cabin dimensions to suit your layout and space.
- Color & hygiene upgrades; optional powered footrest, armrest, swivel seat.
- Compatible with small houses and duplexes.
Maintenance & Warranty
- Annual service recommended for optimal performance.
- Battery/UPS health checks where applicable.
- Local support through partners; spare parts available.
- 12-month warranty (extended plans available).
- 12-month warranty for parts & battery (extended plans available).
- Phone, WhatsApp & email support; remote diagnostics.
- Optional annual maintenance plans.
- Replacement of wear parts (batteries, sensors, etc.).
- Troubleshooting guides & user manuals.

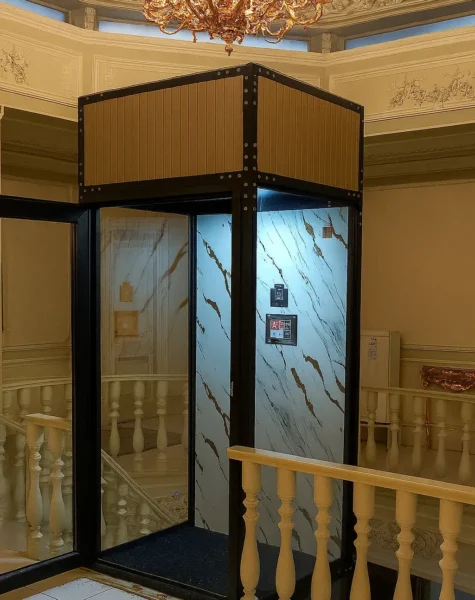

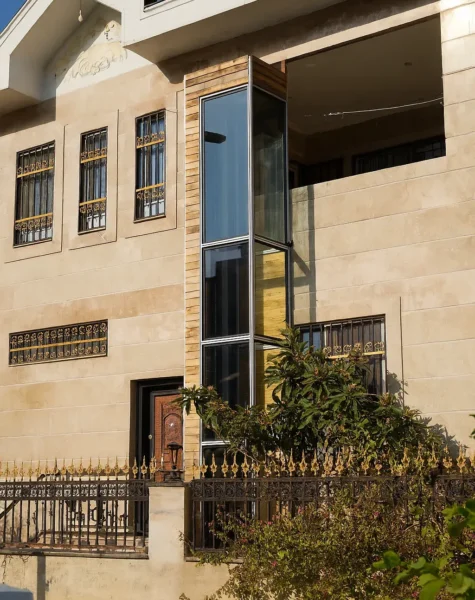

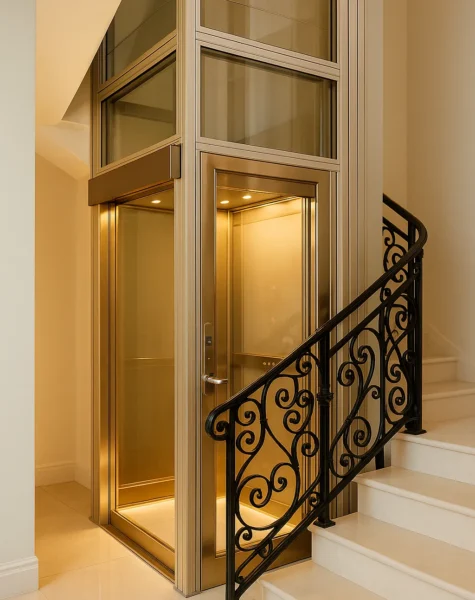

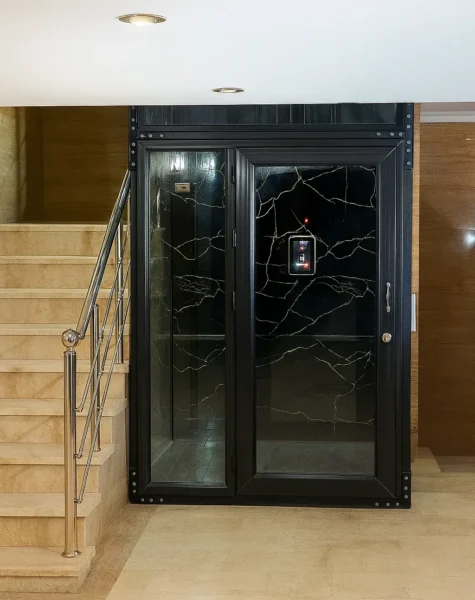

Gallery
Hydraulic vs. Rack & Pinion
| Feature | Hydraulic | Rack & Pinion |
|---|---|---|
| Best for | ≤ 4 m travel, up to 2 stops | Up to 15.5 m, up to 5 stops |
| Ride Feel | Very quiet & smooth | Smooth, precise at taller travel |
| Footprint | Very compact | Compact |
| Power | Single-phase | Single-phase |
Hydraulic vs. Traction (Overview)
| Feature | Hydraulic | Traction |
|---|---|---|
| Ride feel | Very smooth, quiet | Smooth and efficient |
| Power cut | Easy manual lowering; UPS optional | UPS recommended |
| Footprint | Compact machine space | Very compact with MRL |
| Best for | Low-rise homes | Higher travels & frequent use |
Site Check & Notes
Share photos, floor-to-floor heights, preferred stop locations and available footprint. Our engineers will confirm the optimal model and configuration.
Download Center
Instant Price Estimator
Estimation only — detailed quote after site survey
$XX,XXX USD (ex-works)
* The estimator uses typical component & installation factors. Final price may vary with site, finishes, and local codes.
Frequently Asked Questions
Before You Buy
What is a home lift?
A compact residential lift for moving between floors without a traditional elevator shaft or machine room.
Do I need a pit or machine room?
No. It installs on a flat, reinforced base with no pit or separate machine room.
What power is required?
Standard 220–240 V single-phase AC. Optional UPS/back-up is available for power cuts.
How many stops and how much travel?
Up to 5 stops and ~15.5 m travel depending on model and layout.
What is the capacity?
Typical 250 kg (1–3 persons). Higher capacities are available on request.
Can it carry a wheelchair?
Yes. Choose a wheelchair-friendly open platform or an enclosed cabin with adequate door width.
What types of homes are suitable?
Most duplexes and private villas with a clear floor opening/shaft space. Minimal structural work is needed.
Does installation require breaking walls or structural work?
Usually no. We use customized rails and modular cabins to fit existing spaces with clean installation.
How much space is required?
A 2-person cabin typically starts from ~100 × 100 cm shaft opening. Sizes are tailored to your house.
Can I choose cabin color and materials?
Yes. Fabrics, trims, floor finishes and custom RAL rail/panel colors are available.
How long does installation take?
Many projects finish in under a working day with minimal civil work.
Can the lift be relocated if we move house?
Yes. Our team can dismantle, relocate and recommission the lift after a site check.
What safety features are included?
Door interlocks, obstruction sensors, soft start/stop, emergency stop, overspeed protection, key/child lock.
Do I need municipality/engineering permits?
It depends on your region. We’ll guide you to comply with local residential codes if applicable.
What maintenance is needed?
Annual service is recommended (drive, controller, batteries if UPS is fitted). We provide plans and support.
