Straight Stairlift — Quiet, Safe, Slim-Rail Access
Custom rail for straight stairs, fold-away chair & footrest, smooth rack-and-pinion drive, 24 V DC with automatic charging, up to 200 kg capacity.
Up to 200 kg / 440 lb
24 V DC + battery backup
Soft-start / Soft-stop
Fold-away chair & footrest
Key Facts
Capacity: Up to 200 kg
Strong carriage & gentle motion
Strong carriage & gentle motion
24V DC Power
Battery backup — runs during power cuts
Battery backup — runs during power cuts
Easy controls
Armrest joystick + RF remotes
Armrest joystick + RF remotes
Slim, fold-away design
Arms, seat & footrest fold to save space
Arms, seat & footrest fold to save space
✅ Safety edges & seatbelt
🔒 Child-lock key switch
🪑 Manual swivel (powered optional)
🧰 Quick, no structural changes
Where It Fits
Private Homes
Single-flight straight stairs in apartments or villas.
Assisted Living
Reliable daily use with easy caregiver controls.
Clinics & Rehab
Smooth travel supports safe transfers.
Rental & Temporary
Fast install & removable without structural work.
Advantages
Safety
- Seatbelt with secure clip; optional body harness.
- Safety edges stop the lift if an obstacle is detected.
- Child-lock key switch, emergency stop, over-speed protection.
Comfort
- Padded seat & backrest; ergonomic armrests.
- Manual swivel at landings (powered swivel optional).
- Footrest: manual or powered/illuminated option.
Space Saving
- Slim rail bolted to treads — not the wall.
- Fold-away arms, seat and footrest keep stairs clear.
- Zero-Intrusion style parking available for tight top/bottom landings.
Easy Use
- Armrest joystick with soft-start/soft-stop drive.
- Two wireless remotes to call/send the chair.
- 24V auto-charging — works during mains outage.
Technical Specifications
| Item | Value | Notes |
|---|---|---|
| Capacity | Up to 200 kg (440 lb) | Maximum load |
| Drive | Rack & pinion, DC motor | Smooth soft-start/stop |
| Power System | 24 V DC with automatic charging | Runs during power cuts |
| Controls | Armrest joystick + 2 RF remotes | Key switch lockout |
| Seat | Padded, height-adjustable | Manual swivel; powered optional |
| Footrest | Manual or powered (illuminated optional) | Non-slip surface |
| Rail | Custom straight rail | Left or right-hand install |
| Min. Stair Width | ~ ≥ 700 mm (typical) | Confirm at site survey |
| Safety | Seatbelt, safety edges, emergency stop | Child-lock key switch |
| Parking/Charging | Top & bottom charge points | Optional park overrun |
| Installation | Bolted to stair treads | No structural changes needed |
| Operating Temp | Indoor rated | Outdoor version available separately |
* Specifications may vary by configuration. Final compatibility is confirmed after on-site Photo Survey.
Options & Accessories
🎮
Joystick
Soft-touch, intuitive control.
Soft-touch, intuitive control.
🔁
Powered Swivel
Automatic 80° turn at landings.
Automatic 80° turn at landings.
🦵
Powered/Illuminated Footrest
Fold by switch; subtle LED for low-light.
Fold by switch; subtle LED for low-light.
🧷
Body Harness
Extra support with adjustable straps.
Extra support with adjustable straps.
🧵
Upholstery & Trim
Multiple fabrics, colors & trims.
Multiple fabrics, colors & trims.
🧠
Diagnostic Display
Clear text status & alerts.
Clear text status & alerts.
🧩
Powered Hinged Rail
Folds clear of doorways at the bottom.
Folds clear of doorways at the bottom.
📐
Slide Track
Track moves with chair for tight landings.
Track moves with chair for tight landings.
🔑
Lock & Key
Prevent unauthorized use.
Prevent unauthorized use.
📲
Mobile App (Custom)
Usage stats & alerts on request.
Usage stats & alerts on request.
Installation
- Tailored straight rail built from Photo Survey of your stairs.
- Bolts into treads; no structural changes to walls.
- Typical installation time: a few hours by trained technicians.
- Left- or right-hand installation; top/bottom park positions available.
Maintenance & Warranty
- Keep seat, armrests & rail clean; check safety edges regularly.
- Battery auto-charges at park points; annual service recommended.
- 12-month warranty on parts & battery; long-life motor coverage available.
- Local service contracts & quick repairs via our regional partner.
After-Sales & Service Programs
After-Sales Support & Warranty
- 12-month warranty for parts & battery; extended plans available.
- Phone & WhatsApp tech support, quick on-site response.
- Battery & spare-parts replacement, calibration & safety checks.
- User & caregiver training on handover.
Customization Options
- Seat height/width/depth adjustments.
- Powered swivel, powered/illuminated footrest.
- Upholstery fabrics, trims, and rail color to suit décor.
- Left/right installation, park overruns, call/send remotes.
Rental & Buy-Back
- Short-term rental for temporary needs.
- Buy-back or removal when no longer required.
- Refurbished units available at lower prices.
- Relocation service if you move home.
Gallery
Rail-End Solutions (for Doorways & Tight Landings)
| Feature | Standard Straight Rail | Powered Hinged Rail | Slide Track |
|---|---|---|---|
| Landing Clearance | Requires space beyond last step | Folds up to clear doorways | Track moves with chair; minimal intrusion |
| Operation | Fixed | Auto fold/unfold | Moves automatically with chair |
| Best for | Open bottom landings | Door at bottom of stairs | Very tight top/bottom spaces |
| Maintenance | Low | Low | Low-moderate |
Site Check & Limitations
- Typical minimum stair width: ~ ≥ 700 mm; confirm via Photo Survey.
- Weight, knee-clearance, and door positions are verified before build.
- Zero-Intrusion or hinged/slide options are recommended for tight landings.
- For outdoor stairs, select the Outdoor configuration (weather-protected package).
Stairlift Features
🛡️
Making safety our main priority
- Easy-to-use seatbelt and integrated safety sensors.
- Lift stops gently if there’s anything in its path.
🛠️
Professional installation
- Rails are pre-assembled and test-fitted before installation.
- Quick, clean installation by trained professionals.
🌊
A smoother ride
- Electric drive moves smoothly up and down the stairs.
- No jolts—soft start, acceleration and stop help protect your back.
💺
Designed for comfort
- Cushioned seat and backrest for every ride.
- Thoughtful details that make a big difference.
🎨
Plenty of options
- Chairs, fabrics and colors to suit your home.
- Rail tailored to your stairs; chair tailored to your needs.
↔️
Taking up less space
- Rail is built to hug every bend as tightly as possible.
- More free space for others to use the stairs easily.
✅
Quick safety checklist
- Integrated safety sensors, child-lock, easy seatbelt
- Fold-away chair
- Powered footrest fold (optional)
- Powered Easy-Turn / Swivel (optional)
- Ideal for narrow stairs; tilted seat for easier entry/exit
🌦️

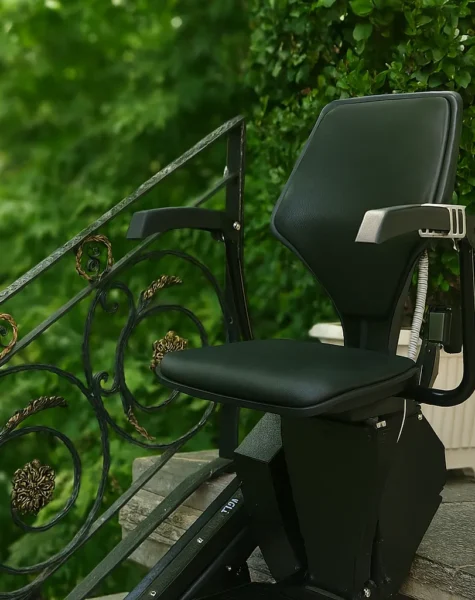

Outdoor stairlift
- Built to withstand the elements.
- Protective cover keeps it clean and dry.
📏
Get the right stairlift for your home
If your staircase is less than 700 mm (straight) or 800 mm (curved) wide,
a traditional stairlift may not fit. Our compact designs for narrow staircases give you a practical solution without major building work.
🧩
Compact design
- Slim rail and compact carriage.
- Fixes to the stairs, not the wall—fits more stair types.
🔒
Safety features in daily use
- Folding arms, seat and footrest—fold away neatly when not in use.
- Practical for users and other stair users at all times.
Available Configurations
🧑🦽Seated Straight Stairlift
Comfortable seated travel for standard straight stairs.🧍Standing (Perch) Straight
Ideal when knee/hip flexibility is limited or stairs are very narrow.🔄Dual-Mode (Seated & Standing)
One system that supports both seated and perch riding styles.🌧️Weatherproof Outdoor Straight
Sealed components and protective cover for balconies & outdoor steps.🏡Cabin-Style Straight (Gardens & Villas)
Partially enclosed cabin style for premium outdoor projects.
🏋️
Heavy-Duty Straight (200 kg)
Reinforced rail & high-torque drive for heavier users or demanding sites; wider seat/footrest options with the same smooth ride.
Download Center
Frequently Asked Questions
Does the straight stairlift include a warranty?
Yes. A 12-month warranty for parts and battery is included as standard. Extended plans and long-life motor coverage are available.
How long does installation take?
Typically a few hours. Your rail is custom-built from the survey and then bolted to the stair treads without structural changes.
Will it work during a power cut?
Yes. The 24 V DC batteries power the lift; they recharge automatically at the top/bottom park points.
What is the minimum stair width?
Most straight installations require ~ ≥ 700 mm clear width. We confirm feasibility after a Photo Survey.
Can I add a powered swivel or powered footrest?
Both are optional. Powered swivel turns the seat automatically at landings; the powered/illuminated footrest folds by switch for safer use.
What safety features are included?
Seatbelt, safety edges, emergency stop, child-lock key switch and soft-start/stop drive. A body harness is available if extra support is needed.
